* @file lv_port_fs.c
*
*/
/*Copy this file as "lv_port_fs.c" and set this value to "1" to enable content*/
#if 1
/*********************
* INCLUDES
*********************/
#include "lv_port_fs.h"
#if USE_FATFS_FILE_SYSTEM==1
#include "fatfs/ff.h"
#endif
#include "../lvgl/lvgl.h"
#include "stdio.h"
/*********************
* DEFINES
*********************/
/**********************
* TYPEDEFS
**********************/
/**********************
* STATIC PROTOTYPES
**********************/
static void fs_init(void);
#if USE_PC_FILE_SYSTEM==1
static lv_fs_res_t fs_open(lv_fs_drv_t *drv, void *file_p, const char *path,
lv_fs_mode_t mode);
static lv_fs_res_t fs_close(lv_fs_drv_t *drv, void *file_p);
static lv_fs_res_t fs_read(lv_fs_drv_t *drv, void *file_p, void *buf,
uint32_t btr, uint32_t *br);
static lv_fs_res_t fs_write(lv_fs_drv_t *drv, void *file_p, const void *buf,
uint32_t btw, uint32_t *bw);
static lv_fs_res_t fs_seek(lv_fs_drv_t *drv, void *file_p, uint32_t pos,
lv_fs_whence_t whence);
static lv_fs_res_t fs_size(lv_fs_drv_t *drv, void *file_p, uint32_t *size_p);
static lv_fs_res_t fs_tell(lv_fs_drv_t *drv, void *file_p, uint32_t *pos_p);
static void* fs_dir_open(lv_fs_drv_t *drv, void *rddir_p, const char *path);
static lv_fs_res_t fs_dir_read(lv_fs_drv_t *drv, void *rddir_p, char *fn);
static lv_fs_res_t fs_dir_close(lv_fs_drv_t *drv, void *rddir_p);
#endif
/**********************
* STATIC VARIABLES
**********************/
/**********************
* GLOBAL PROTOTYPES
**********************/
/**********************
* MACROS
**********************/
/**********************
* GLOBAL FUNCTIONS
**********************/
#if USE_PC_FILE_SYSTEM==1
bool pcfs_ready(lv_fs_drv_t *drv);
static void* pcfs_open(lv_fs_drv_t *drv, const char *fn, lv_fs_mode_t mode);
static lv_fs_res_t pcfs_write(struct _lv_fs_drv_t *drv, void *file_p,
const void *buf, uint32_t btw, uint32_t *bw);
static lv_fs_res_t pcfs_read(lv_fs_drv_t *drv, void *file_p, void *buf,
uint32_t btr, uint32_t *br);
static lv_fs_res_t pcfs_close(lv_fs_drv_t *drv, void *file_p);
static lv_fs_res_t pcfs_seek(lv_fs_drv_t *drv, void *file_p, uint32_t pos,
lv_fs_whence_t whence);
static lv_fs_res_t pcfs_tell(lv_fs_drv_t *drv, void *file_p, uint32_t *pos_p);
#endif

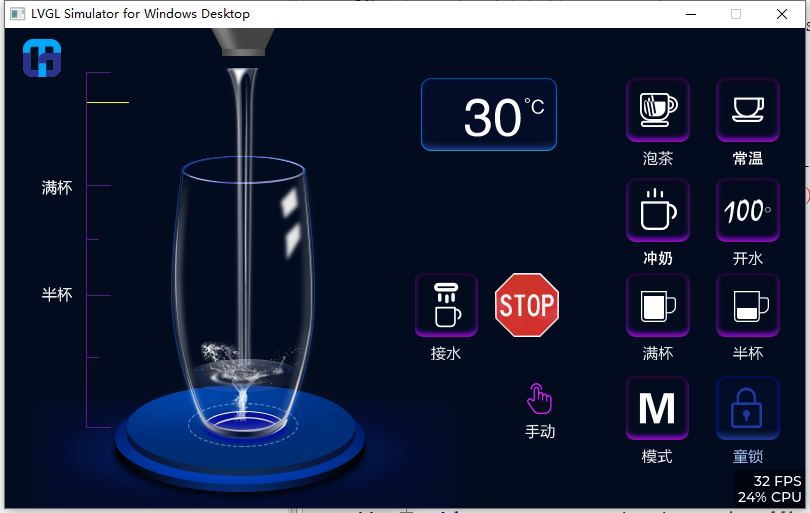

void lv_port_fs_init(void) {
/*----------------------------------------------------
* Initialize your storage device and File System
* -------------------------------------------------*/
fs_init();
/*---------------------------------------------------
* Register the file system interface in LVGL
*--------------------------------------------------*/
#if USE_FATFS_FILE_SYSTEM==1

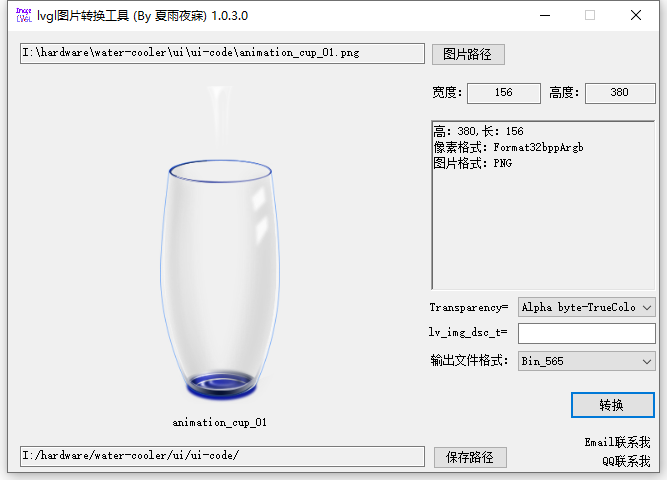

/*Add a simple drive to open images*/
static lv_fs_drv_t fs_drv;
lv_fs_drv_init(&fs_drv);
/*Set up fields...*/
fs_drv.letter = 'S';
fs_drv.open_cb = fs_open;
fs_drv.close_cb = fs_close;
fs_drv.read_cb = fs_read;
fs_drv.write_cb = fs_write;
fs_drv.seek_cb = fs_seek;
fs_drv.tell_cb = fs_tell;
fs_drv.dir_close_cb = fs_dir_close;
fs_drv.dir_open_cb = fs_dir_open;
fs_drv.dir_read_cb = fs_dir_read;
lv_fs_drv_register(&fs_drv);
#endif
#if USE_PC_FILE_SYSTEM==1
static lv_fs_drv_t pcfs_drv; /*A driver descriptor*/
lv_fs_drv_init(&pcfs_drv);
pcfs_drv.user_data = NULL;
pcfs_drv.letter = 'S';
pcfs_drv.ready_cb = pcfs_ready;
pcfs_drv.write_cb = pcfs_write;
pcfs_drv.open_cb = pcfs_open;
pcfs_drv.close_cb = pcfs_close;
pcfs_drv.read_cb = pcfs_read;
pcfs_drv.seek_cb = pcfs_seek;
pcfs_drv.tell_cb = pcfs_tell;
lv_fs_drv_register(&pcfs_drv);
#endif
}
/**********************
* STATIC FUNCTIONS
**********************/
/*Initialize your Storage device and File system.*/
static void fs_init(void) {
/*E.g. for FatFS initialize the SD card and FatFS itself*/
#if USE_FATFS_FILE_SYSTEM==1
sfc_init();
#endif
/*You code here*/
}
#if USE_PC_FILE_SYSTEM==1
//文件系统是否准备好被回调函数pcfs_ready
bool pcfs_ready(lv_fs_drv_t *drv) {
(void) drv; /*Unused*/
return true; //这里仅返回true,如果是嵌入式，则是返回嵌入式文件系统挂载成功与否的标志
}
//打开文件被回调的函数pcfs_open
static void* pcfs_open(lv_fs_drv_t *drv, const char *fn, lv_fs_mode_t mode) {
(void) drv; /*Unused*/
errno = 0;
const char *flags = "";
if (mode == LV_FS_MODE_WR)
flags = "wb";
else if (mode == LV_FS_MODE_RD)
flags = "rb";
else if (mode == (LV_FS_MODE_WR | LV_FS_MODE_RD))
flags = "a+";

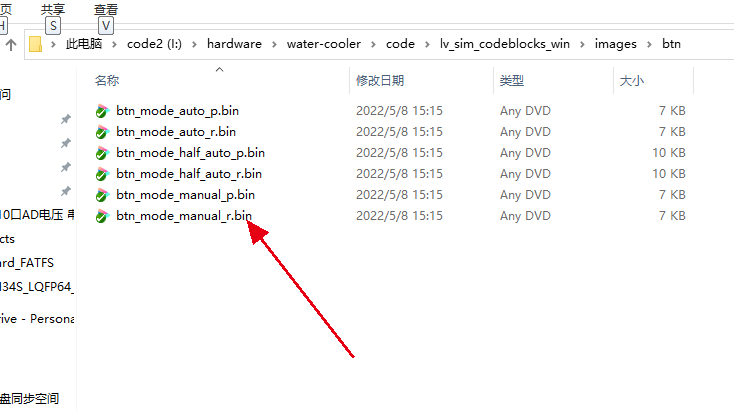

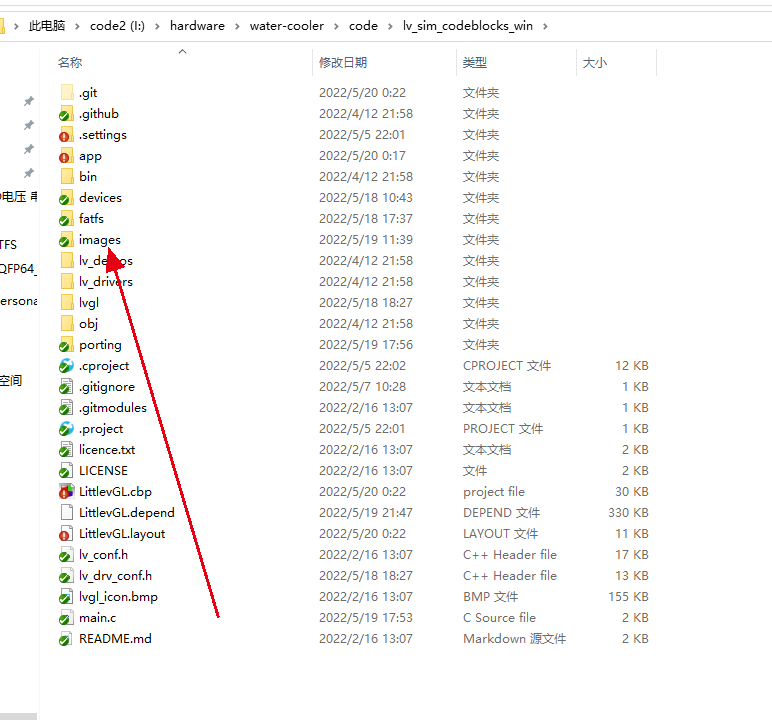

/*Make the path relative to the current directory (the projects root folder)*/
char buf[256];
sprintf(buf, "./%s", fn);
return fopen(buf, flags);
}
//写入文件被回调的函数pcfs_write
static lv_fs_res_t pcfs_write(struct _lv_fs_drv_t *drv, void *file_p,
const void *buf, uint32_t btw, uint32_t *bw) {
(void) drv; /*Unused*/
*bw = (uint32_t) fwrite(buf, 1, btw, file_p);
return LV_FS_RES_OK;
}
//读取文件被回调的函数pcfs_read
static lv_fs_res_t pcfs_read(lv_fs_drv_t *drv, void *file_p, void *buf,
uint32_t btr, uint32_t *br) {
(void) drv; /*Unused*/
//pc_file_t* fp = file_p; /*Just avoid the confusing casings*/
*br = (uint32_t) fread(buf, 1, btr, file_p);
return LV_FS_RES_OK;
}
//关闭文件被回调的函数pcfs_close
static lv_fs_res_t pcfs_close(lv_fs_drv_t *drv, void *file_p) {
(void) drv; /*Unused*/
return fclose(file_p);
}
//移动文件位置被回调的函数pcfs_seek
static lv_fs_res_t pcfs_seek(lv_fs_drv_t *drv, void *file_p, uint32_t pos,
lv_fs_whence_t whence) {
(void) drv; /*Unused*/
return fseek(file_p, pos, whence);
}
//获取文件位置被回调的函数pcfs_tell
static lv_fs_res_t pcfs_tell(lv_fs_drv_t *drv, void *file_p, uint32_t *pos_p) {
(void) drv; /*Unused*/
*pos_p = ftell(file_p);
return LV_FS_RES_OK;
}
#endif
#if USE_FATFS_FILE_SYSTEM==1
/**

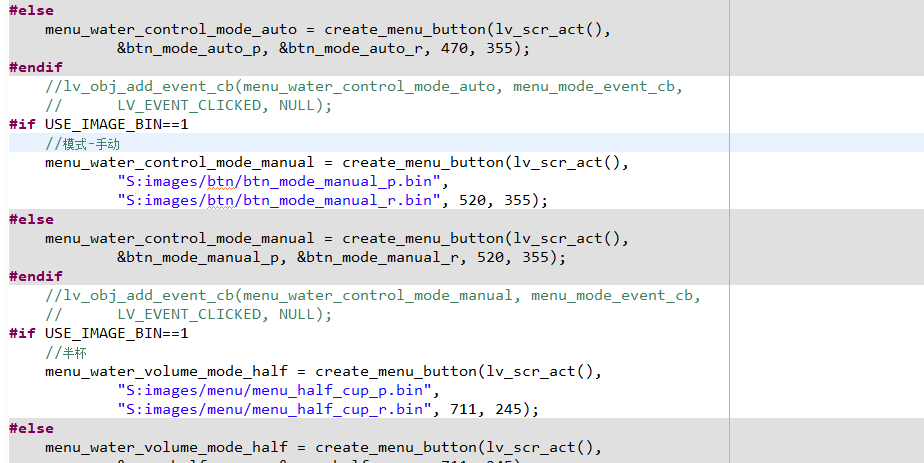

* Open a file
* @param drv pointer to a driver where this function belongs
* @param path path to the file beginning with the driver letter (e.g. S:/folder/file.txt)
* @param mode read: FS_MODE_RD, write: FS_MODE_WR, both: FS_MODE_RD | FS_MODE_WR
* @return a file descriptor or NULL on error
*/
static lv_fs_res_t fs_open(lv_fs_drv_t *drv, void *file_p, const char *path,
lv_fs_mode_t mode)
{
lv_fs_res_t res = LV_FS_RES_NOT_IMP;
/************************************************
* 在这里，我们需要先进行设备的判断，因为我们实际上
* 可能不只有一个设备，而且LVGL里使用letter（即单个字符）
* 作为驱动号
* 而在FatFS里使用VOLUME_STR（字符串）或者一个字节的pdrv
* 驱动号，使用前要进行转换。
*
* 有一种方便的方法，就是上面提到的user_data，我们可以把
* VOLUME_STR提前装入user_data，那我们的程序进行判断时
* 耦合度会更低，在更多设备时，这种方法会更方便
*************************************************/
char *path_buf = NULL;
uint8_t opt_mode = 0;
uint16_t path_len = strlen(path);
// 根据传入的letter判断是什么存储设备
switch (drv->letter)
{
case 'S': // SD card
path_buf = (char*) lv_mem_alloc(sizeof(char) * (path_len + 4));
sprintf(path_buf, "SD:/%s", path);
break;
case 'F': // SPI FALSH
path_buf = (char*) lv_mem_alloc(sizeof(char) * (path_len + 6));
sprintf(path_buf, "SPIF:/%s", path);
break;
default:
printf("No drive %c\n", drv->letter);
return LV_FS_RES_NOT_EX;
}
/* 文件操作方法，将FatFS的转换成LVGL的操作方法 */
if (mode == LV_FS_MODE_WR)
{
opt_mode = FA_OPEN_ALWAYS | FA_WRITE;
}
else if (mode == LV_FS_MODE_RD)
{
opt_mode = FA_OPEN_EXISTING | FA_READ;
}
else if (mode == (LV_FS_MODE_WR | LV_FS_MODE_RD))
{
opt_mode = FA_WRITE | FA_READ;
}
/* 调用FatFs的函数 */
FRESULT fres = f_open((FIL*) file_p, path_buf, opt_mode);
if (fres != FR_OK)
{
printf("f_open error (%d)\n", fres);
res = LV_FS_RES_NOT_IMP;
}
else
res = LV_FS_RES_OK;
lv_mem_free(path_buf);
return res;
}
/**
* Close an opened file
* @param drv pointer to a driver where this function belongs
* @param file_p pointer to a file_t variable. (opened with lv_ufs_open)
* @return LV_FS_RES_OK: no error or any error from @lv_fs_res_t enum
*/
static lv_fs_res_t fs_close(lv_fs_drv_t *drv, void *file_p)
{
lv_fs_res_t res = LV_FS_RES_NOT_IMP;
/*Add your code here*/
return res;
}
/**
* Read data from an opened file
* @param drv pointer to a driver where this function belongs
* @param file_p pointer to a file_t variable.
* @param buf pointer to a memory block where to store the read data
* @param btr number of Bytes To Read
* @param br the real number of read bytes (Byte Read)
* @return LV_FS_RES_OK: no error or any error from @lv_fs_res_t enum
*/
static lv_fs_res_t fs_read(lv_fs_drv_t *drv, void *file_p, void *buf,
uint32_t btr, uint32_t *br)
{
lv_fs_res_t res = LV_FS_RES_NOT_IMP;
/*Add your code here*/
return res;
}
/**
* Write into a file
* @param drv pointer to a driver where this function belongs
* @param file_p pointer to a file_t variable
* @param buf pointer to a buffer with the bytes to write
* @param btr Bytes To Write
* @param br the number of real written bytes (Bytes Written). NULL if unused.
* @return LV_FS_RES_OK: no error or any error from @lv_fs_res_t enum
*/
static lv_fs_res_t fs_write(lv_fs_drv_t *drv, void *file_p, const void *buf,
uint32_t btw, uint32_t *bw)
{
lv_fs_res_t res = LV_FS_RES_NOT_IMP;
/*Add your code here*/
return res;
}
/**
* Set the read write pointer. Also expand the file size if necessary.
* @param drv pointer to a driver where this function belongs
* @param file_p pointer to a file_t variable. (opened with lv_ufs_open )
* @param pos the new position of read write pointer
* @param whence tells from where to interpret the `pos`. See @lv_fs_whence_t
* @return LV_FS_RES_OK: no error or any error from @lv_fs_res_t enum
*/
static lv_fs_res_t fs_seek(lv_fs_drv_t *drv, void *file_p, uint32_t pos,
lv_fs_whence_t whence)
{
lv_fs_res_t res = LV_FS_RES_NOT_IMP;
/*Add your code here*/
return res;
}
/**
* Give the position of the read write pointer
* @param drv pointer to a driver where this function belongs
* @param file_p pointer to a file_t variable.
* @param pos_p pointer to to store the result
* @return LV_FS_RES_OK: no error or any error from @lv_fs_res_t enum
*/
static lv_fs_res_t fs_tell(lv_fs_drv_t *drv, void *file_p, uint32_t *pos_p)
{
lv_fs_res_t res = LV_FS_RES_NOT_IMP;
/*Add your code here*/
return res;
}
/**
* Initialize a 'lv_fs_dir_t' variable for directory reading
* @param drv pointer to a driver where this function belongs
* @param path path to a directory
* @return pointer to the directory read descriptor or NULL on error
*/
static void* fs_dir_open(lv_fs_drv_t *drv, void *rddir_p, const char *path)
{
lv_fs_res_t dir = NULL;
/*Add your code here*/
//dir = ... /*Add your code here*/
return dir;
}
/**
* Read the next filename form a directory.
* The name of the directories will begin with '/'
* @param drv pointer to a driver where this function belongs
* @param rddir_p pointer to an initialized 'lv_fs_dir_t' variable
* @param fn pointer to a buffer to store the filename
* @return LV_FS_RES_OK: no error or any error from @lv_fs_res_t enum
*/
static lv_fs_res_t fs_dir_read(lv_fs_drv_t *drv, void *rddir_p, char *fn)
{
lv_fs_res_t res = LV_FS_RES_NOT_IMP;
/*Add your code here*/
return res;
}
/**
* Close the directory reading
* @param drv pointer to a driver where this function belongs
* @param rddir_p pointer to an initialized 'lv_fs_dir_t' variable
* @return LV_FS_RES_OK: no error or any error from @lv_fs_res_t enum
*/
static lv_fs_res_t fs_dir_close(lv_fs_drv_t *drv, void *rddir_p)
{
lv_fs_res_t res = LV_FS_RES_NOT_IMP;
/*Add your code here*/
return res;
}
#endif
#else /*Enable this file at the top*/
/*This dummy typedef exists purely to silence -Wpedantic.*/
typedef int keep_pedantic_happy;
#endif
|
